GIT: Intelligent LED Street Lighting System
Intel Market Ready Solution
Description

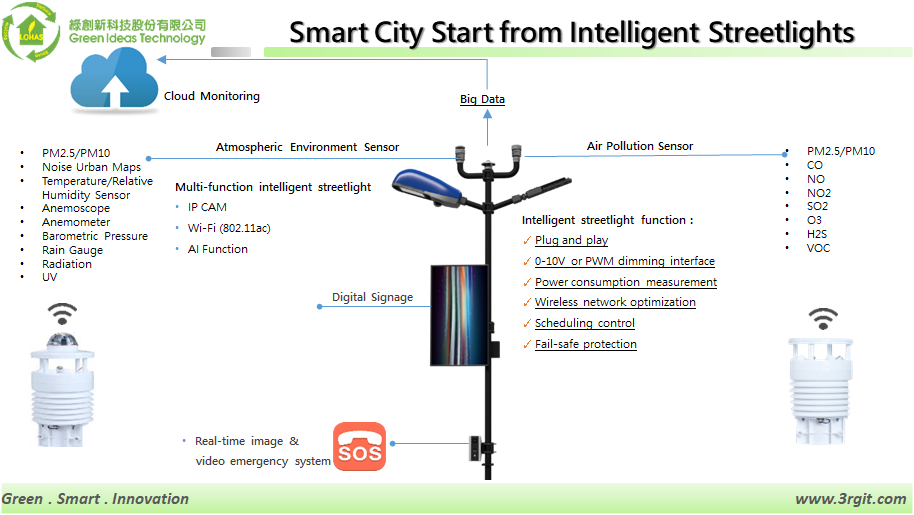

Light posts are very important infrastructure of a city and are deployed densely

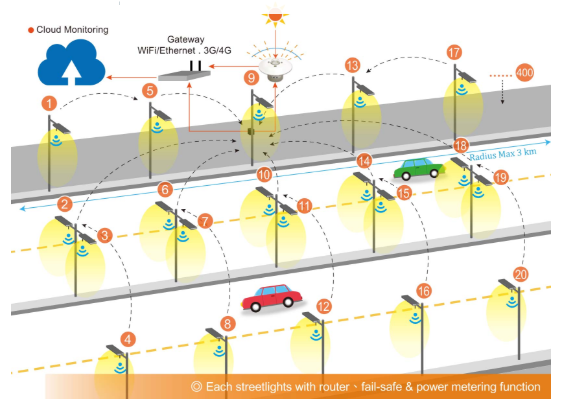

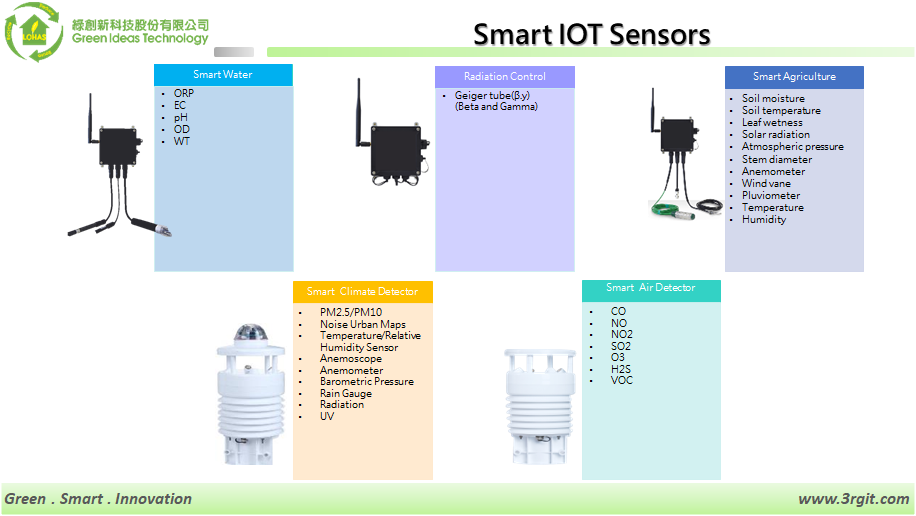

With an intelligent LED street lighting wireless control system as architecture, street lighting intelligence is the first step in construction of a green and smart city and is used as a platform for Internet-of-Things detectors. Various detectors can be connected to network through common GIT-NET communication platforms, such as water level detector, air pollution detector, toxic/combustible gas detector, microclimate base station (for detection of rainfall, wind force, temperature, humidity, ultraviolet, etc.)
IoT Solution Application
Benefits
- Turn on/off streetlights (according to the calendar, schedule or ambient condition)
- Quick installation (Maintenance Efficiency & No need to dig the road)
- Dimming control
- Measure Solar Irradiance
- Power metering (Measurement error value＜1%)

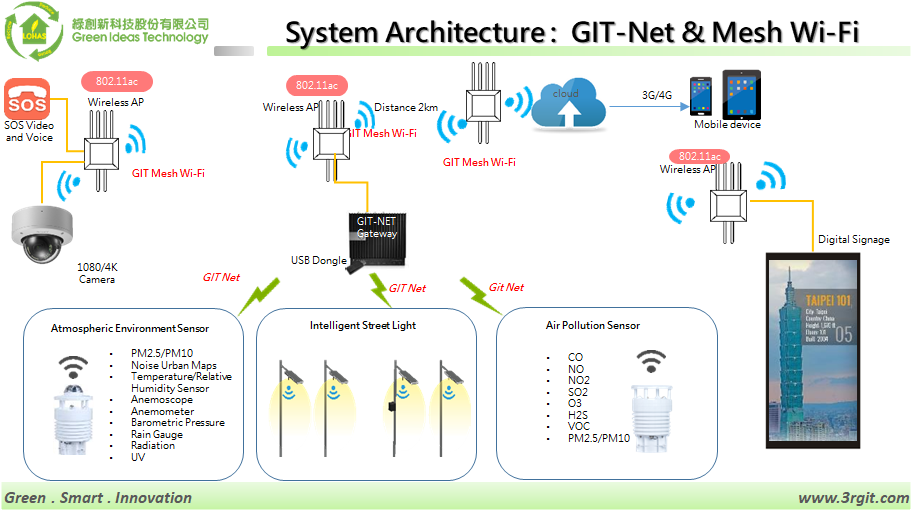

- 802.15.4 Wireless mesh network
- Scheduling & Perpetual Calendar
- Fail Safe
- RTC with Backup Battery
- OTA (upgrade program Over the Air)
- Gateway with 3G/4G/Wi-Fi/Ethernet Communication and each
- Gateway can control maximum 400 piece street lights(Intel® Atom™ Dual Core E3826 1.46 GHz processor inside)
- Two street lights furthest transmission distance 200 meters
IoT Solution Specification
Download
Solution videos:
