YUAN HIGH-TECH: YUAN Video Processing Platform
AIoT
2022/03/25

YUAN HIGH-TECH: YUAN Video Processing Platform

Intel IoT RFP Ready Kits

Share via QR Code.
Please open the Wechat application and click the icon of [Discover] at the bottom of the screen.
Then click "Scan" to scan this QR Code.

Description

A world-renowned video solution provider YUAN High-Tech passed the Intel® IoT RFP Ready Kit program and became an Intel® Golden Partner. SC6T0 AI+ video processing platform is equipped with the Intel® latest 11th Intel® Core™ i7 processor to provide varies of deep learning model models through Intel® Media SDK and Intel® Distribution OpenVINO ™ toolkit, optimizing edge computing for AI deployments in surveillance and security, intelligent manufacturing, smart agriculture, and transportation.

Yuan High-Tech video processing platform in different vertical fields to benefit the IoT ecosystem :

Advanced Features of SC6T0 AI+ : Provide a complete video and audio acquisition system
· Support H.264/H.265/3D multiple video format transcoding requirements
· Support SDI / HDMI / DVD-D / VGA/ YPbPr /Composite / S-Video /Ethernet/USB video input

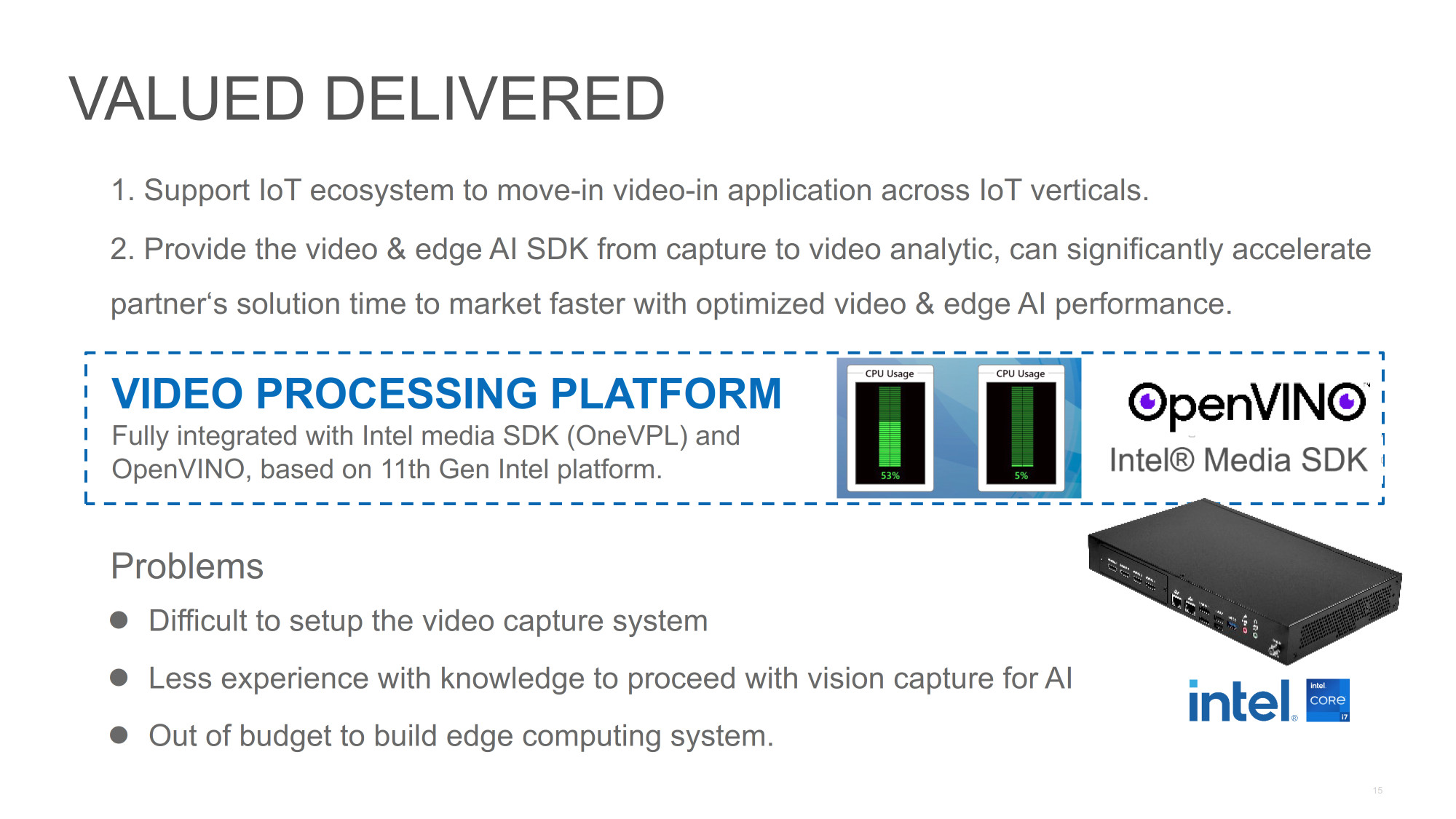

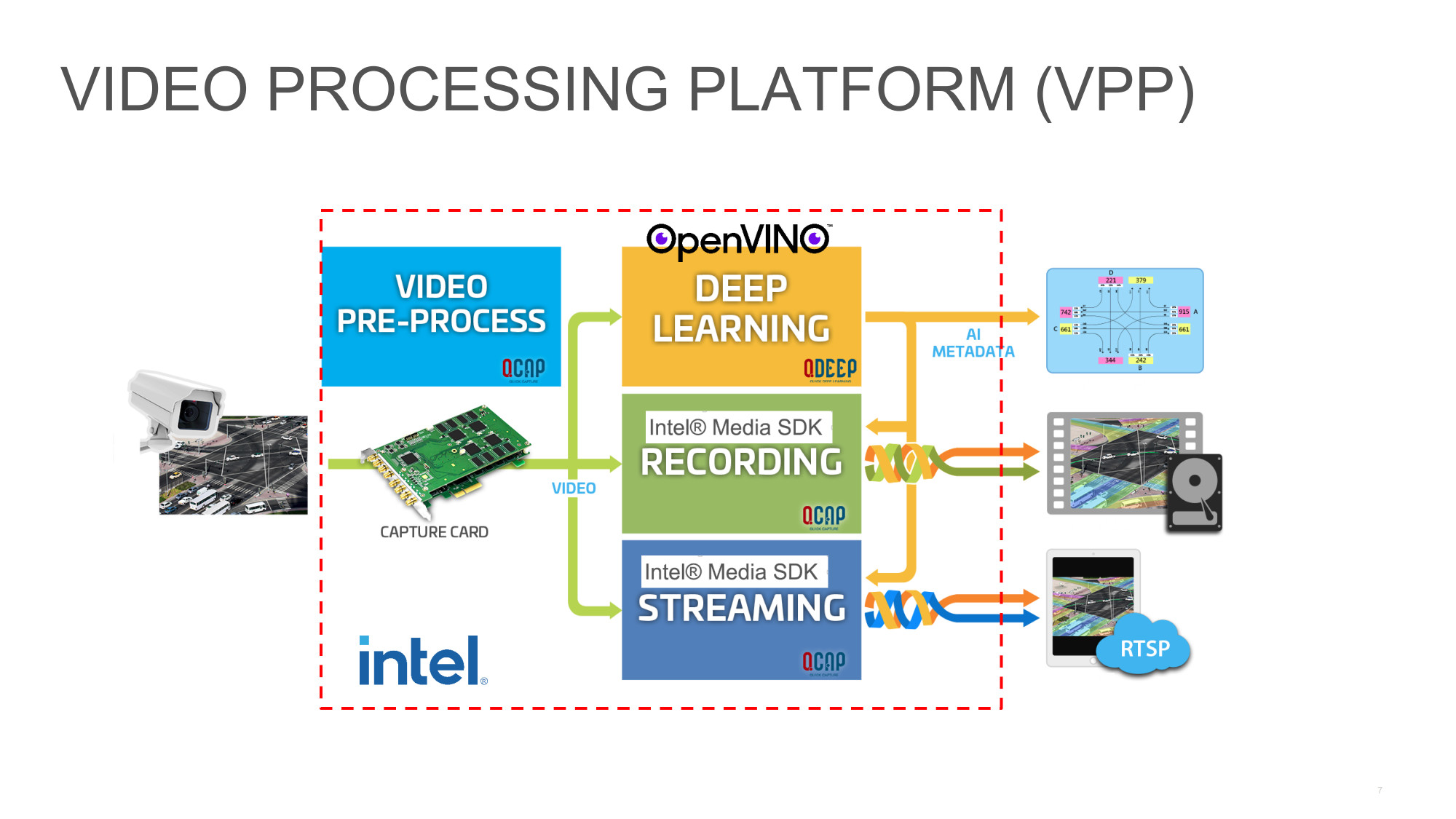

Optimizing video workflows for business platforms

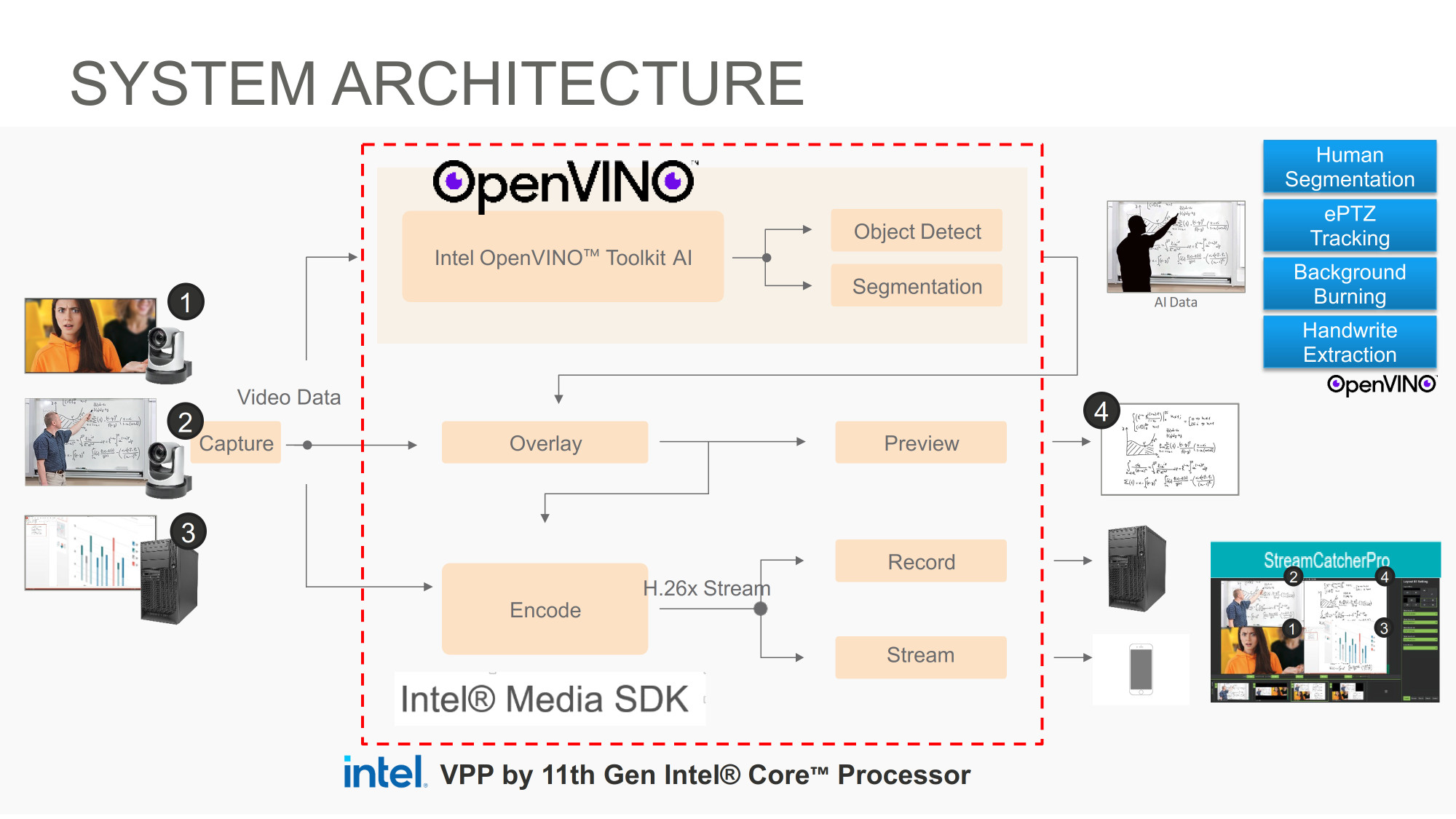

· Provides an optimized platform for streaming, recording, displaying, and video analysis based on Intel TGL design.
· Provides pre-trained NN models designed by OpenVINO for the IoT vertical industry.

Meet the needs of the IOT vertical industry and accelerate the implementation of the solution
· No discrete graphics card and AI accelerator required.
· With the YUAN SDK QCAP, partners can focus on application/solution development.

In the future, Yuan High-Tech will expand the SC6T0 AI+ video processing platform to different vertical industries, so the ecosystem partners do not need to find different suppliers and solutions for different image applications. Yuan High-Tech helps customers to seamlessly integrate complex edge AI vision applications with the least burden!

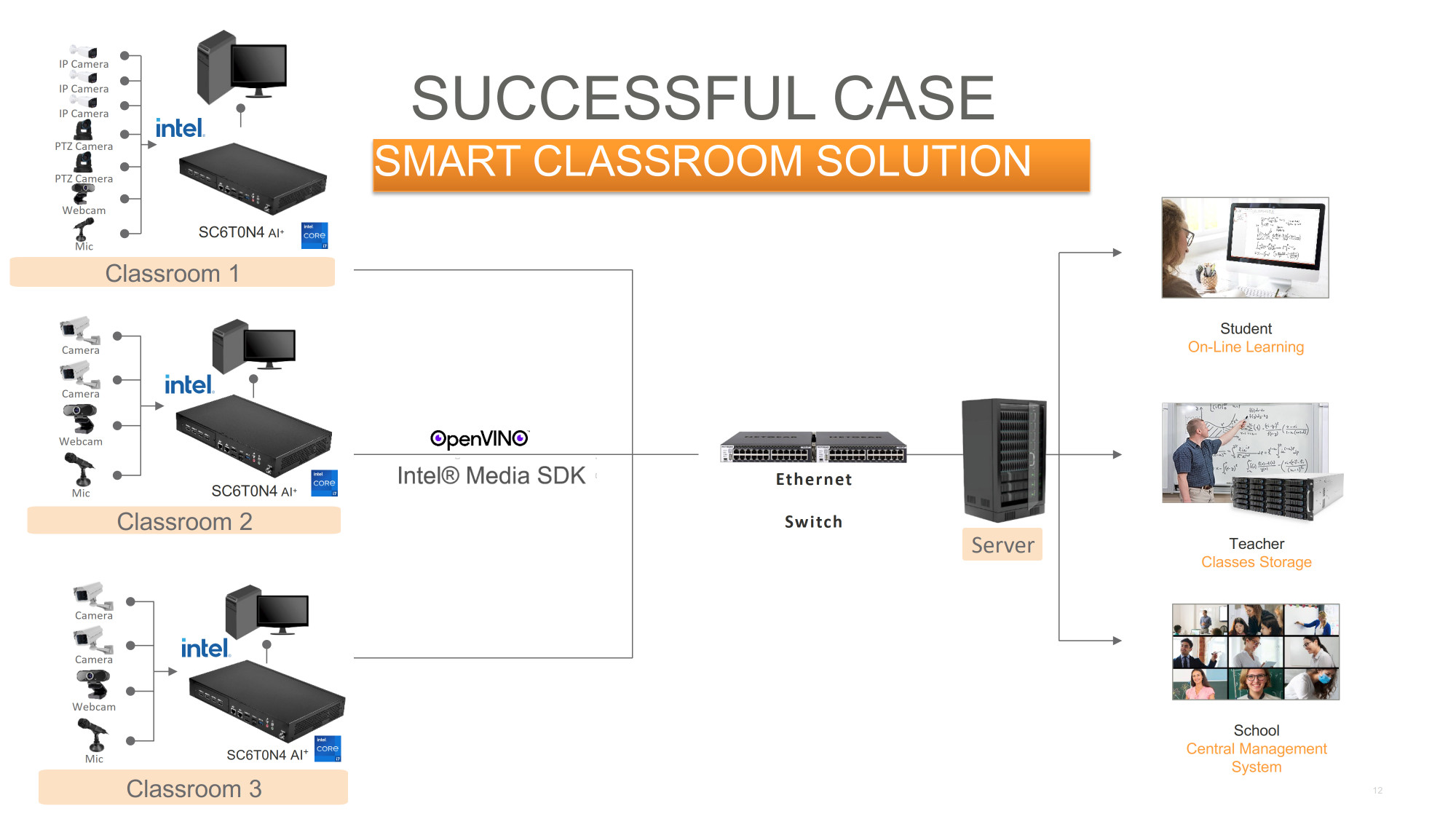

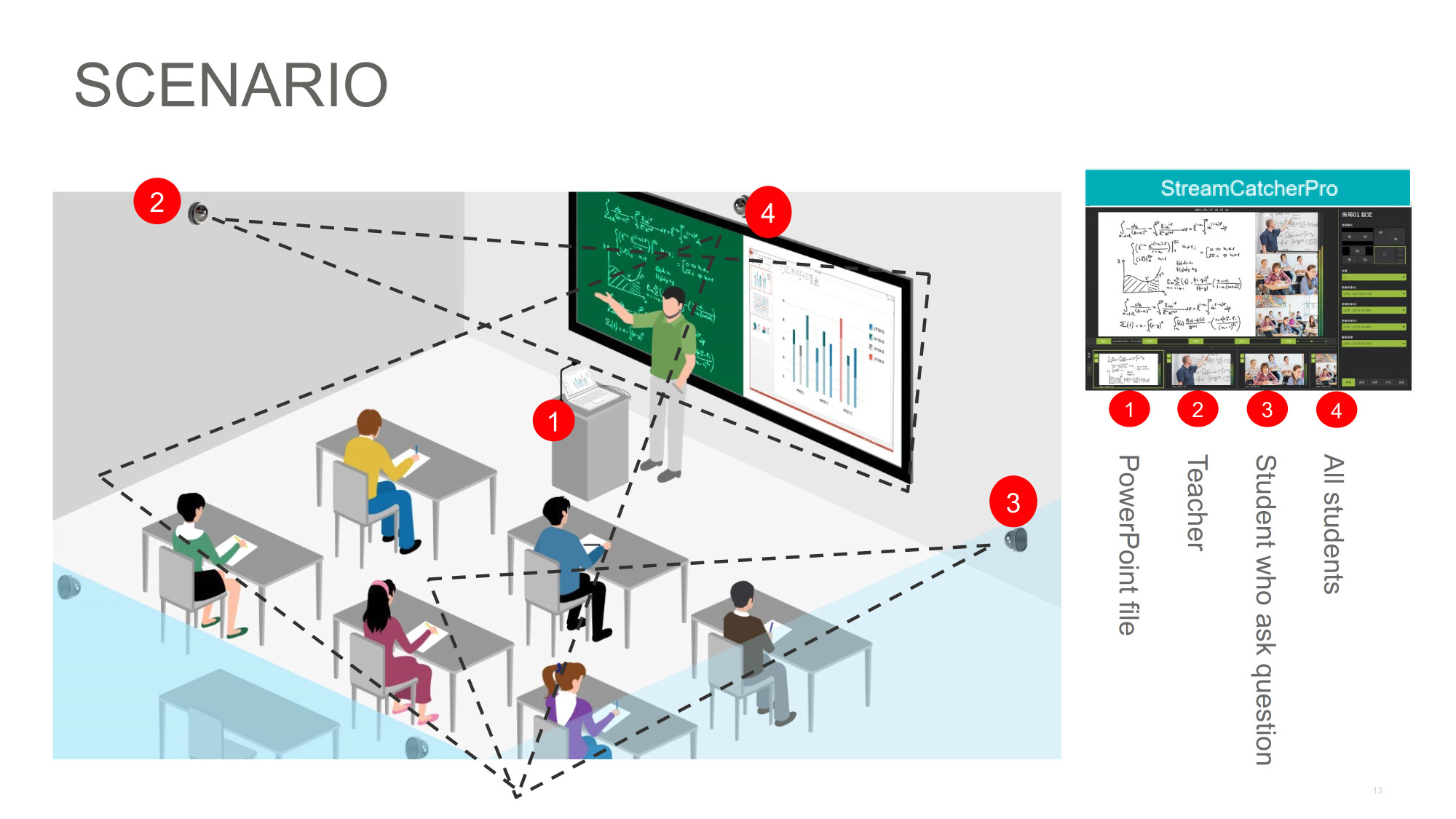

IoT Solution Application








IoT Solution Specification



Supported input & output format:





Product Series Hardware Specification

Model

SC6T0N4 6G-SDI AI+

CPU

11th Gen Intel® Core™ i7 1185G7E (2.8GHz)

Max. FPS

4096×2160p@30/25fps

A/V Input Interfaces

Video
4×6G-SDI

Audio

4×6G-SDI Embedded Digital Audio ( LPCM )

1×3.5mm Line/MIC in

A/V Output Interface

Video
2×HDMI2.0 ( Multiview / PGM )



Audio

2×HDMI Embedded Digital Audio ( LPCM )

1×3.5mm Line out

Video Feature

Support input / output resolutions

4096×2160p@60/50fps ( Output Only )
3840×2160p@60/50fps ( Output Only )
4096×2160p@30/25/24fps
3840×2160p@30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

Video Encode

Support resolutions

4096×2160p@30/25/24fps
3840×2160p@30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

Audio Feature

AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate : 48KHz, 16bit, Stereo

Network Feature

2×RJ45 for 10/100/1000Mbps Ethernet
DHCP client
**Wifi ( Option ):
**802.11b/g/n
**802.11ac
** optional by customer request

5G Support

(option)

LTE Cat20 ( Option )

LTE FDD Supported
LTE TDD Supported



Sub-6 ( Option )

SA Supported
Non-SA Supported

Support Streaming protocol

lNDI Support ( Separate License with NDI Required )

RTSP over UDP/TCP/Multicast/HTTP

RTMP public (web portal)

**TS over IP

**HLS

** optional by customer request

Misc. Features

Firmware upgradable

LED indicator

2×USB3.0

2×USB2.0

Bluetooth Supported ( Option )

PGM mode switch

PGM mode switch

Full screen

Quadview

Picture by picture

Picture in picture

PGM Loop

Full screen switch

Channel 1

Channel 2

Channel 3

Channel 4

Support Record Device

External USB3.0 HDD

Internal SATA 2.5" HDD

※HDD Not Included at SC6T0

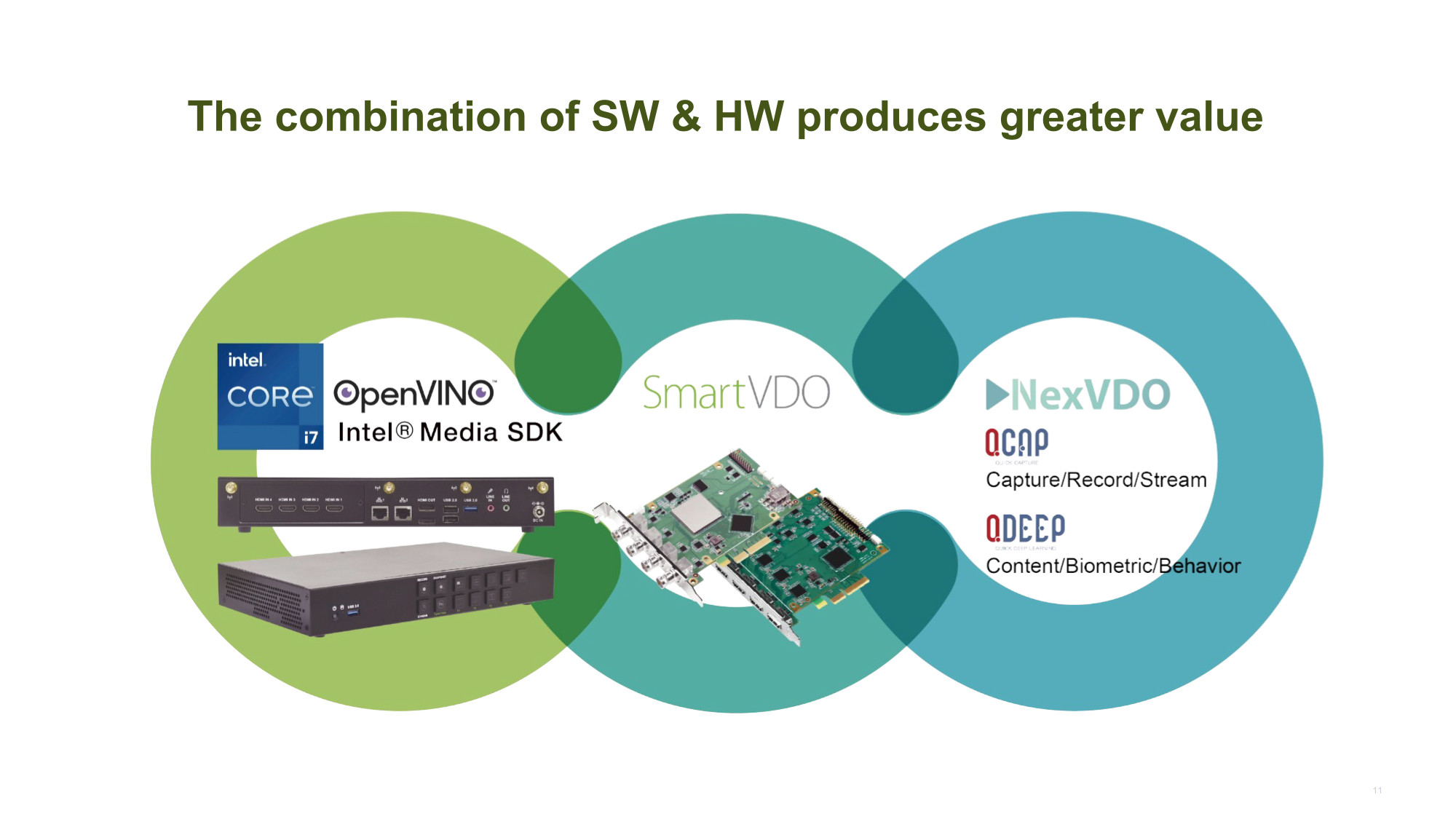

SDK Support

YUAN QCAP video capture SDK

YUAN QDEEP AI algorithm SDK

Intel® Distribution of OpenVINO™ toolkit

AI Features

Face tracking

Background effect

Extracting handwriting

ePTZ

Customizable video AI functions upon request:

QDEEP AI SDK integrated multiple algorithms and deep-learning models in various fields of applications.









System Requirement

Power Supply

DC input : 19V

CASE Size





Product Series Hardware Specification

Model

SC6T0N4 HDMI AI+

CPU

11th Gen Intel® Core™ i7 1185G7E (2.8GHz)

Max. FPS

4096×2160p@30/25fps

A/V Input Interfaces

Video

4×HDMI1.4



Audio

4×HDMI Embedded Digital Audio ( LPCM )

1×3.5mm Line/MIC in

A/V Output Interface

Video

2×HDMI2.0 ( Multiview / PGM )



Audio

2×HDMI Embedded Digital Audio ( LPCM )

1×3.5mm Line out

Video Feature

Support input / output resolutions

4096×2160p@60/50fps ( Output Only )

3840×2160p@60/50fps ( Output Only )

4096×2160p@30/25/24fps

3840×2160p@30/25/24fps

1920×1080p@60/50fps

1920×1080p@30/25/24fps

1920×1080i@60/50fps

1280×720p@60/50fps

1280×1024p@60fps

1280×960p@60fps

1024×768p@60fps

800×600p@60fps

640×480p@60fps

720×480p@60fps

720×576p@50fps

720×480i@60fps

720×576i@50fps

Video Encode

Support resolutions

4096×2160p@30/25/24fps

3840×2160p@30/25/24fps

1920×1080p@60/50fps

1920×1080p@30/25/24fps

1920×1080i@60/50fps

1280×720p@60/50fps

1280×1024p@60fps

1280×960p@60fps

1024×768p@60fps

800×600p@60fps

640×480p@60fps

720×480p@60fps

720×576p@50fps

720×480i@60fps

720×576i@50fps

Audio Feature

AAC-LC

Configurable bit rate range from 32Kbps to 384Kbps

Sample rate : 48KHz, 16bit, Stereo

Network Feature

2×RJ45 for 10/100/1000Mbps Ethernet

DHCP client

**Wifi ( Option ):

**802.11b/g/n

**802.11ac

** optional by customer request

5G Support

(option)

LTE Cat20 ( Option )

LTE FDD Supported

LTE TDD Supported



Sub-6 ( Option )

SA Supported

Non-SA Supported

Support Streaming protocol

NDI Support ( Separate License with NDI Required )

RTSP over UDP/TCP/Multicast/HTTP

RTMP public (web portal)

**TS over IP

**HLS

** optional by customer request

Misc. Features

Firmware upgradable

LED indicator

2×USB3.0

2×USB2.0

Bluetooth Supported ( Option )

PGM mode switch

PGM mode switch

Full screen

Quadview

Picture by picture

Picture in picture

PGM Loop

Full screen switch

Channel 1

Channel 2

Channel 3

Channel 4

Support Record Device

External USB3.0 HDD

Internal SATA 2.5" HDD

※HDD Not Included at SC6T0

SDK Support

YUAN QCAP video capture SDK

YUAN QDEEP AI algorithm SDK

Intel® Distribution of OpenVINO™ toolkit

AI Features

Face tracking

Background effect

Extracting handwriting

ePTZ

Customizable video AI functions upon request:

QDEEP AI SDK integrated multiple algorithms and deep-learning models in various fields of applications.










System Requirement

Power Supply

DC input : 19V

CASE Size
